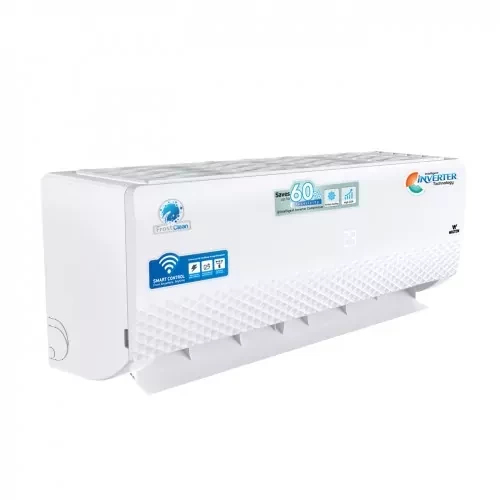

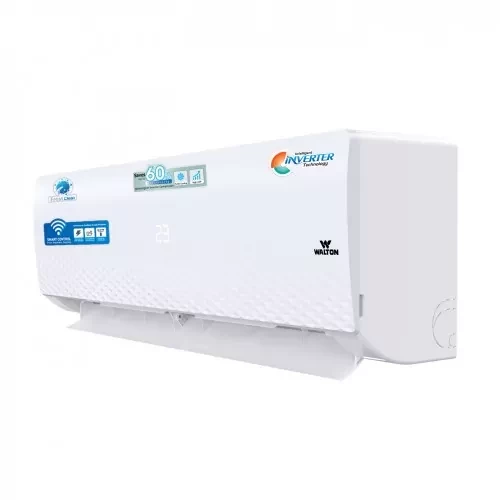

WSI-DIAMOND-12A [Smart] ​ 3517 Watts (12000 BTU/hr)

Basic Features Function:

Cooling BTU/hr: 12000

Cooling Capacity (watts): 3517

COP: 3.01

Rated Input Power (Watts): 1170

Power Supply (phase/voltage (V) /frequency (Hz) /current (A)): single/ 220-240/ 50/ 5.30

Air Circulation (m3/h): 550​

Cooling Features:

Compressor Type: Rotary (Inverter)

Refrigerant Type: R-32

Refrigerant Amount (kg): 0.55

Outdoor Operating Range (outdoor temperature): 20°C – 43°C

Indoor Fin Type: Louver Fin

Outdoor Fin Type Slit Fin

Maximum Pipe Length: 10m

Operations:

Modes Turbo Mode (Maximum Cooling): Yes

ECO Mode (Power Saving): Yes

Auto Operation: Yes

Dry Mode: Yes

Fan Mode: Yes

Speed Setting: Yes (Auto, High, Medium, Low)

Auto Restart Yes

Comfort Cooling Yes

Timer Yes

Sleep Yes

Air Deflection:

Auto UP-Down Swing: Yes

Auto Left-Right Swing: Yes

Remote Control

Display Type: LCD

Operation/Control: Via IR (Infrared Ray)

Child Lock: Yes

Temperature Unit Change: Yes (16​0C to 310C)

Dimensions

Indoor (mm) [LXWXH]: Unit: 832x292x210

Packing: 910X365X285

Outdoor (mm) [LXWXH]: Unit: 721x320x552

Packing: 825X365X630

Weights:

Net Weight (Indoor) (Kg): 10.66 ± 0.5

Gross Weight (Indoor) (Kg): 12.85 ± 0.5

Net Weight (Outdoor) (Kg): 26.10 ± 1.0

Gross Weight (outdoor) (Kg): 29.90 ± 1.0
