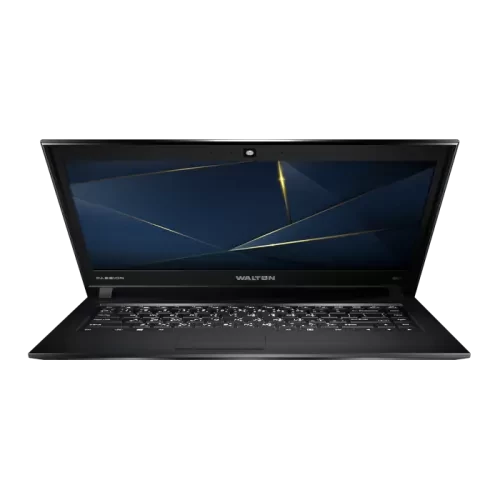

PASSION BX3700

Display:14.0” (35.56mm) HD (1366x768)

Matte LED Backlit Display with 45% NTSC

Memory:4GB DDR4 2133MHz SODIMM RAM

Expandable memory up to 32GB

Graphics:Intel® HD Graphics 620

Storage:1TB HDD 5400rpm 2.5" 7.0mm(H), SATA interface

9.5mm(H) DVD Writer ODD, SATA interface

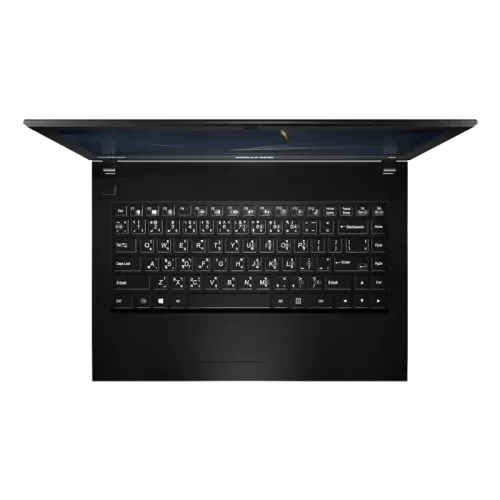

Keyboard and Pointing Device:Multi languages A4 size isolated keyboard with Bengali font (Bijoy Bangla Layout)

Built in touch pad with Microsoft PTP multi-gesture and scrolling function

Audio:2 x 1.5 W speakers,Built in microphone

Interface:1 x USB 2.0 port

1 x USB 3.0 port (USB 3.1 Gen1)

1 x USB 3.0 port (USB 3.1 Gen1) (Type C)

1 x external VGA port

1 x HDMI™ output port (with HDCP)

1 x Headphone jack

1 x Microphone jack

1 x RJ-45 LAN port

1 x DC-in jack

Card Reader

6-in-1 Card reader

MMC / RSMMC

SD / mini SD / SDHC / SDXC

Slots:Two M.2 Card slot

1st for WLAN Combo M.2 2230 Card with PCIe and USB interface (A key)

2nd for M.2 SSD 2280 Card with SATA / PCIE Gen3x4 interface (M Key)

Communication

Built in 10/100/1000Mb Base-TX Ethernet LAN

Intel® Dual Band Wireless-AC 3168, 1x1 AC +BT 4.2

Camera:1.0M HD video camera

Power Supply

Battery

Removable 4 cells Smart Lithium-Ion battery pack, 31WH

Battery life: 430 minutes (N.B: Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, & other factors.)

Adapter:Full Range AC adapter, AC in 100~240V, 50~60Hz,

DC output 19V 2.1A, 40W

Security

Kensington® Lock

Intel® PTT for system without Hardware TPM

Operating System

Windows 10

Weight & Dimension

Height: 24.4mm | Width: 340mm | Depth: 248.3mm | Weight: 1.97kg

In The Box

Laptop Charger

Device Drivers & Utilities

Users Manual
