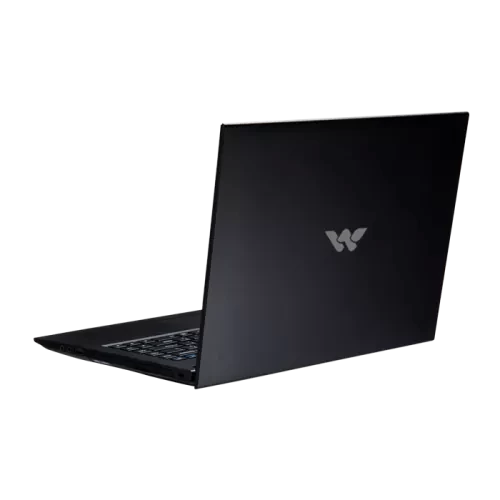

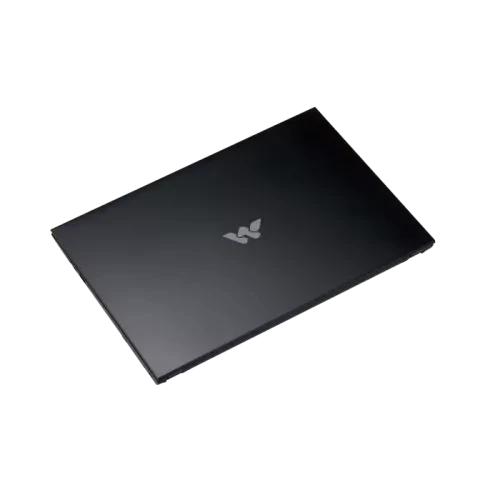

PASSION BX7800

PU + Chipset:ntel® Core™ i7-8550U processor (14nm, 1.80GHz, DDR4-2400MHz, 8MB Smart Cache, TDP: 15W)

 Display: • 35.56cm (14.0") HD (1366x768) Matt LCD

 Memory: • 8GB DDR4 RAM (Dual Channel)

 • Two 260 pins SODIMM sockets, support DDR4 2400MHz (Real operation frequency depends on processor)

 • Expandable memory up to 32GB, depends on 4GB/8GB/16GB SODIMM Module

 Video Controller

 • Intel® UHD Graphics 620

 - Dynamic frequency

 - Intel Dynamic Video Memory Technology

​ - Microsoft DirectX® 12 compatible

 Storage: • 1TB HDD 5400rpm 2.5" 7.0mm(H), SATA interface

 • 9.5mm(H) DVD Writer ODD, SATA interface

 Keyboard and Pointing Device

 • Multi languages A4 size isolated keyboard with Bengali font (Bangladesh Layout)

 • Built in touch pad with Microsoft PTP multi-gesture and scrolling function

 Audio

 • High Definition Audio

 • Built in microphone

 • Built in two speakers

 I/O Ports

 • 1 x USB 2.0 ports

 • 1 x USB 3.0 port (USB3.1 Gen 1)

 • 1 x USB 3.0 port (USB3.1 Gen 1)(Type C)

 • 1 x external VGA port

 • 1 x HDMI™ output port (with HDCP)

 • 1 x Headphone jack

 • 1 x Microphone jack

 • 1 x RJ-45 LAN port

 • 1 x DC-in jack

 Card Reader

 • 6-in-1 Card reader

 - MMC / RSMMC

 - SD / mini SD / SDHC / SDXC

 Slots: • Two M.2 Card slot

  - 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface (A key)

  - 2nd for M.2 SSD 2280 Card with SATA / PCIE Gen3x4 interface (M Key)

 Communication: • Built in 10/100/1000Mb Base-TX Ethernet LAN

 • 1.0M HD video camera

 • Intel® Dual Band Wireless-AC 3168, 1x1 AC +BT M.2 2230

 Power Supply: • Full Range AC adapter, AC in 100~240V, 50~60Hz, DC output 19V 2.1A, 40W

 • Removable 4 cells Smart Lithium-Ion battery pack, 31WH

 • Battery life: 430 minutes

 Security

 • Kensington® Lock

 • Intel® PTT for system without Hardware TPM

 Operating System • Windows 10

 Dimension

 • 340(W) x 248.3(D) x 24.4(H) mm

 Weight

 • 1.97kg, including ODD, RAM*1, M.2 WLAN Card, 7.0mm HDD, M.2 SSD and 31WH battery
