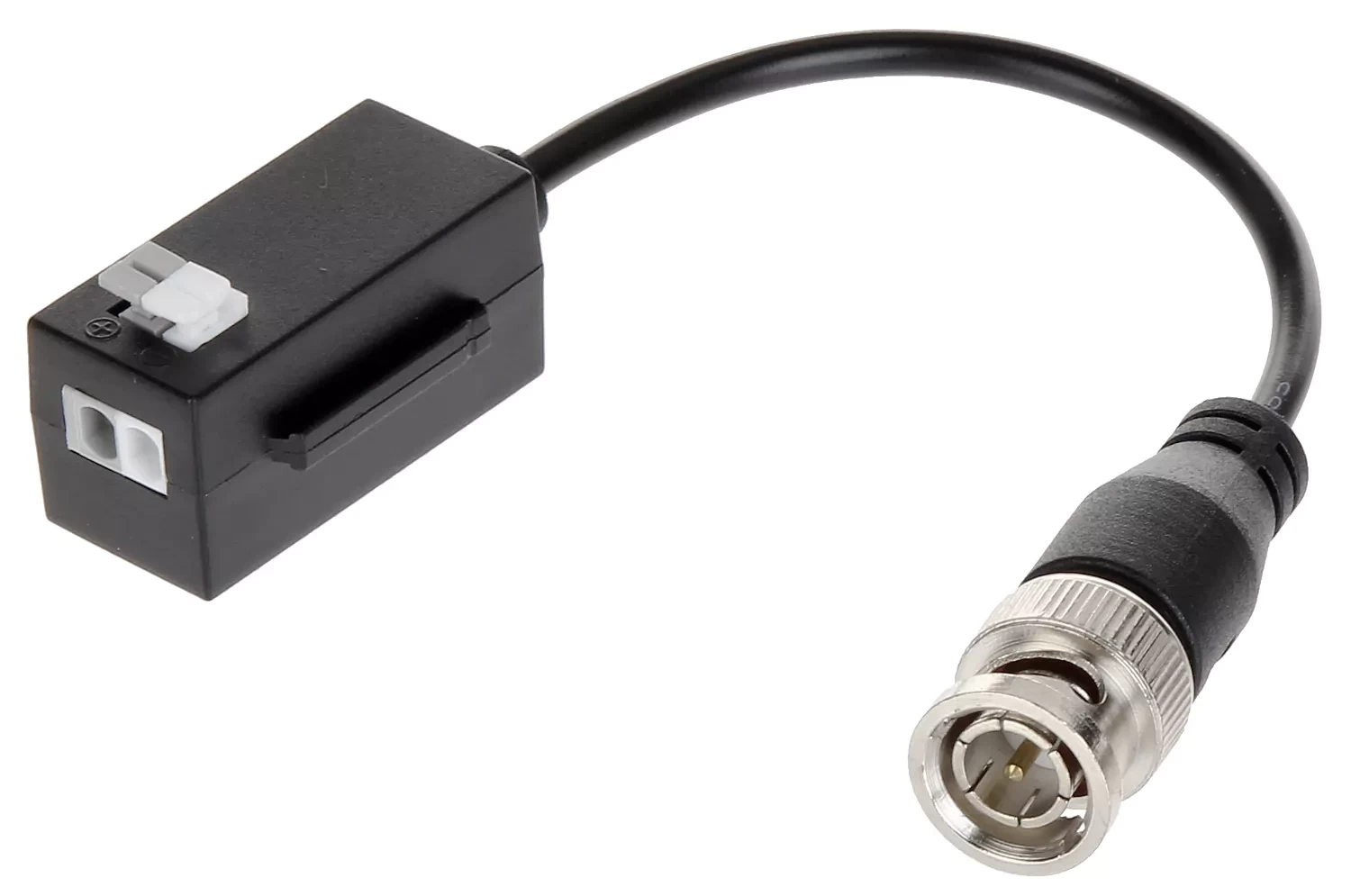

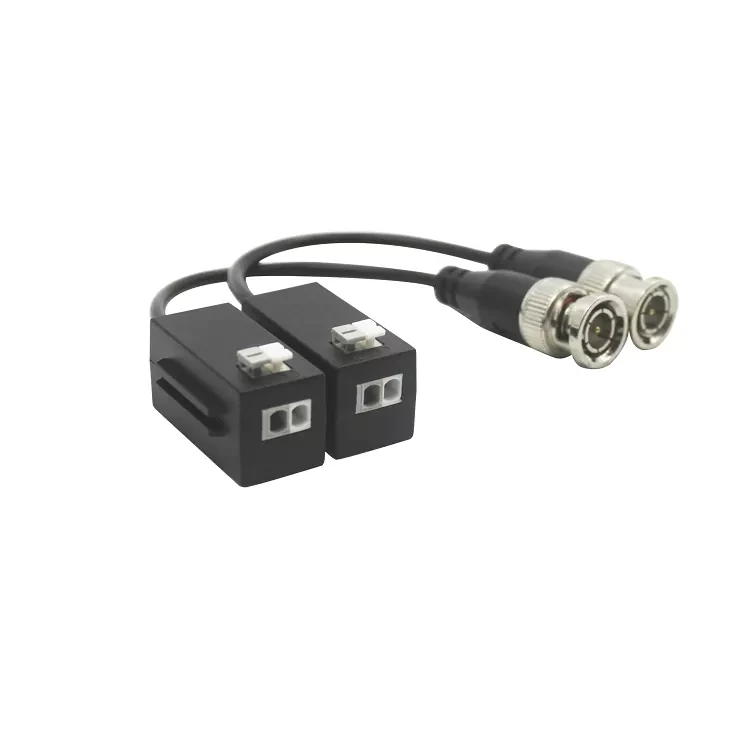

DH-PFM800B-4K

Video Transmission Properties:

Coaxial Video Connector: BNC-M

Connection Way: RJ45

Compatible Format: HDCVI/TVI/AHD/CVBS

Resolution: 720P/1080P/4MP/5MP/4K

Protection:

ESD:

1a contact discharge electricity level 3

1b air discharge electricity level 3

Per: IEC61000-4-2

UTP Cable Connector:

2KV(different-mode), 4KV(common-mode)

Per: IEC61000-4-5

Impedance:

BNC Male Impedance: 75 ohms

UTP Cable Impedance: 100 ohms

Physical Properties:

Weight: 34g (0.07lb) (1 pair)

Dimension(LxWxH):

TX: 173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”)

RX: 49.1mm×19.5mm×21mm (1.93”x0.77“x0.83”)

Shell: ABS

Color: Black

Environmental:

Operating Temperature: -30℃~+70℃(-22℉~+158℉)

Operating Humidity: <95% RH

Storage Temperature: -40℃~+80℃(-40℉~+176℉)
