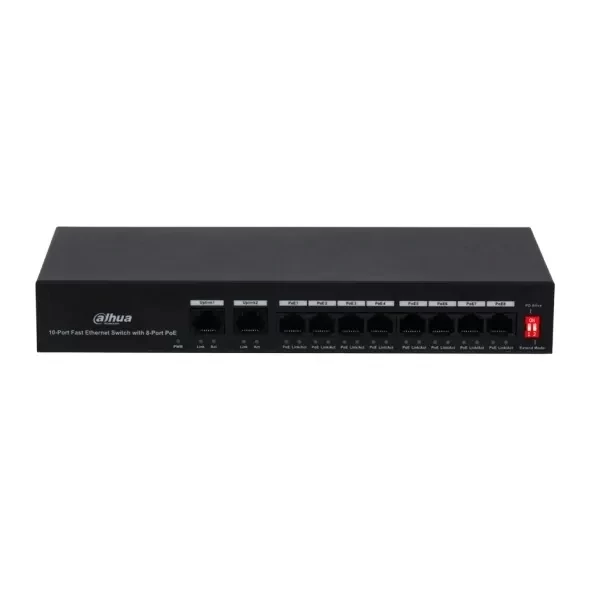

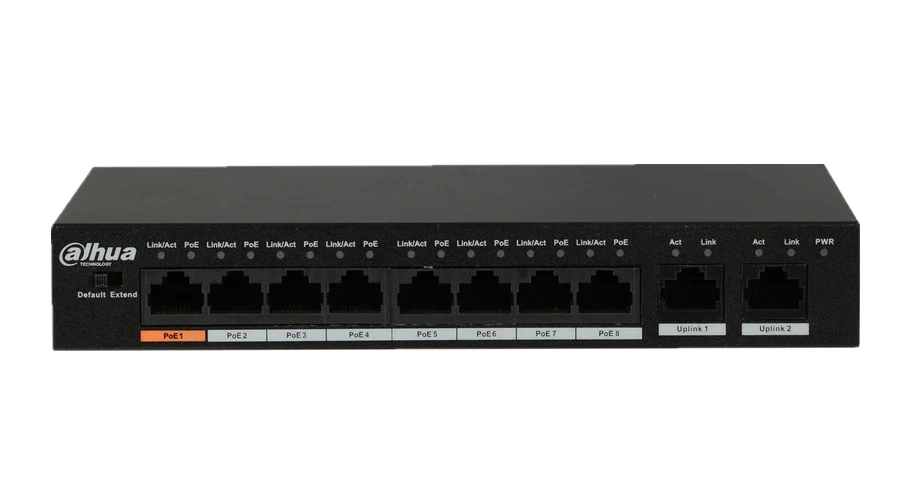

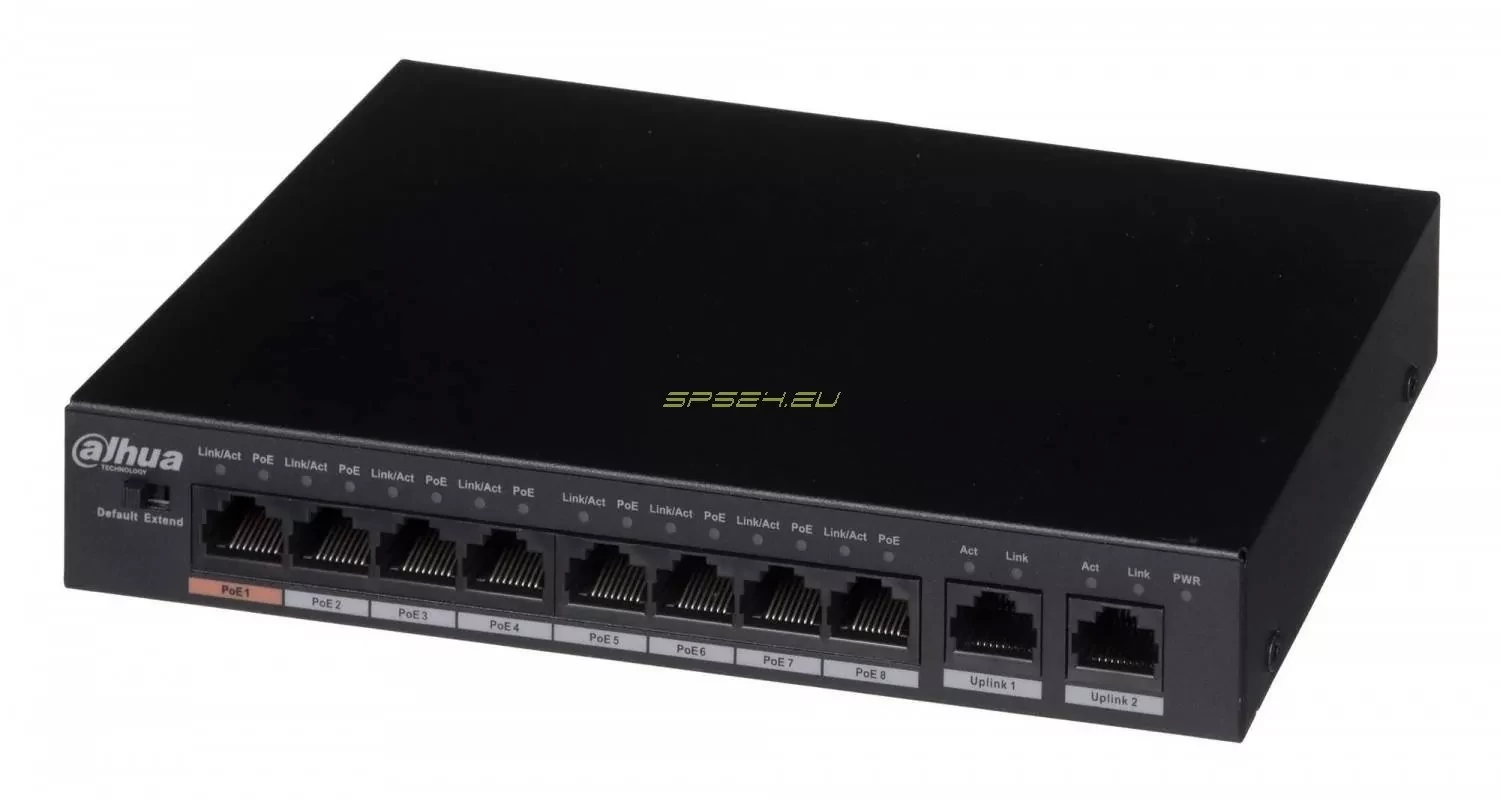

PFS3010-8ET-96

Specification:

Hardware:

Data Transmission Port:

Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)

Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)

Power Supply: 48 V - 57 V DC

Operaing Temperature: –10 °C to +55 °C (+14°F to +131°F)

Operating Humidity: 5% – 95% (RH)

Storage Temperature: –20 °C to +70 °C (–4°F to +158°F)

Storage Humidity: 5% – 95% (RH)

Power Consumption: Idling: 3 W

Full load: 96 W

Performance:

Capacity: 5.60 Gbps

Packet Forwarding Rate: 4.17 Mpps

Packet Buffer Memory: 4 Mbit

MAC Table Size: 8K

Communication Standard: IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x

PoE:

PoE Standard: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power: 96 W

Power Consumption Management: Yes

PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE: 250 m long distance PoE transmission

PoE Watchdog: Yes

General:

Statics Protection:

Air discharge: 8 kV

Contact discharge: 6 kV

Thunder-proof:

Common mode: 4 kV

Differential mode: 2 kV

Net Weight: 0.50 kg (1.10 lb)

Gross Weight: 1.32 kg (2.91 lb)

Product Dimensions:

190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")
