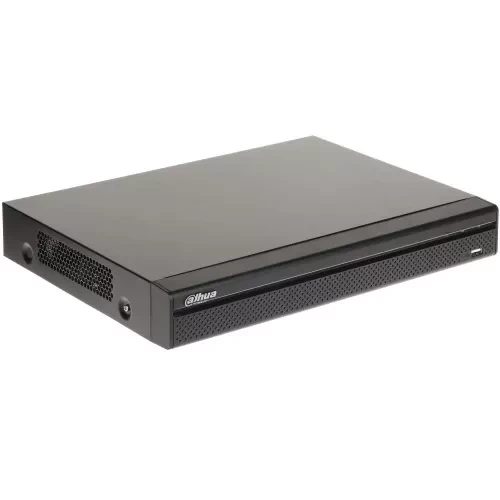

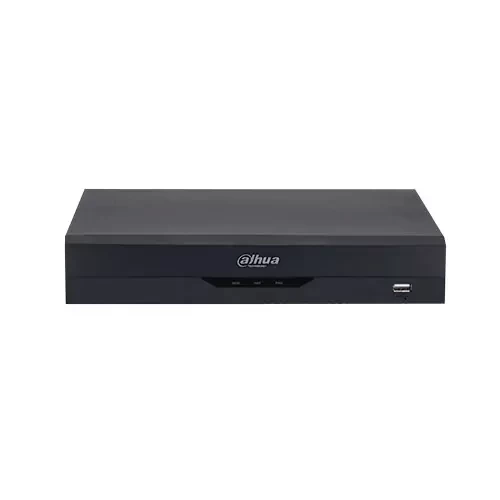

XVR1A08

Specification:

System:

Main Processor: Embedded Processor

Operating System: Embedded LINUX

Audio and Video:

IP Camera Input:

8CH: 8+2, each channel up to 5MP

HDCVI Camera: 1080P@25/30fps, 720P@25/30fps

AHD Camera: 1080P@25/30, 720P@25/30fps

TVI Camera: 1080P@25/30, 720P@25/30fps

CVBS Camera: PAL/NTSC

Two-Way Talk: Reuse audio in/out, RCA

Display:

Interface: 1 HDMI ,1 VGA

Resolution: 1920×1080, 1280×1024, 1280×720, 1024x768

Multi-Screen Display:

When IP extension mode not enabled:

8CH: 1/4/8/9

When IP extension mode enabled:

8CH: 1/4/8/9/16

OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording:

Compression: H.264

Resolution: 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Record Rate: Main Stream- 8CH: the 1st channel 1080N/ 720P (1~25/30fps), others 1080N (1~12fps)/ 720P(1~15fps); 960H/ D1/ HD1/ BCIF/ CIF/ QCIF (1~25/30fps)

Sub steram- CIF/QCIF (1~7fps)

Bit Rate: 32Kbps ~ 4096Kbps Per Channel

Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection And Alarm:

Trigger Event: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Playback And Backup:

Sync Playback: 8CH: 1/4/9

Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode: USB Device/Network

Third Party Support:

Third Party Support: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Network:

Interface: 1 RJ-45 Port (100M)

Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.)

Maximum User Access: 128 users

Smart Phone: iPhone, iPad, Android

Interoperability: ONVIF 16.12, CGI Conformant

Storage:

Internal HDD: 1 SATA Port, up to 6TB capacity

Auxiliary Interface:

USB: 2 USB 2.0

Power:

Power Supply: DC12V/1.5A

Power Consumption: <10W

Component Environment:

Operational Conditions: -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH

Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Construction:

Dimensions: Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)

Net Weight: 0.55kg (1.2lb)

Gross Weight: 1kg (2.2lb)
