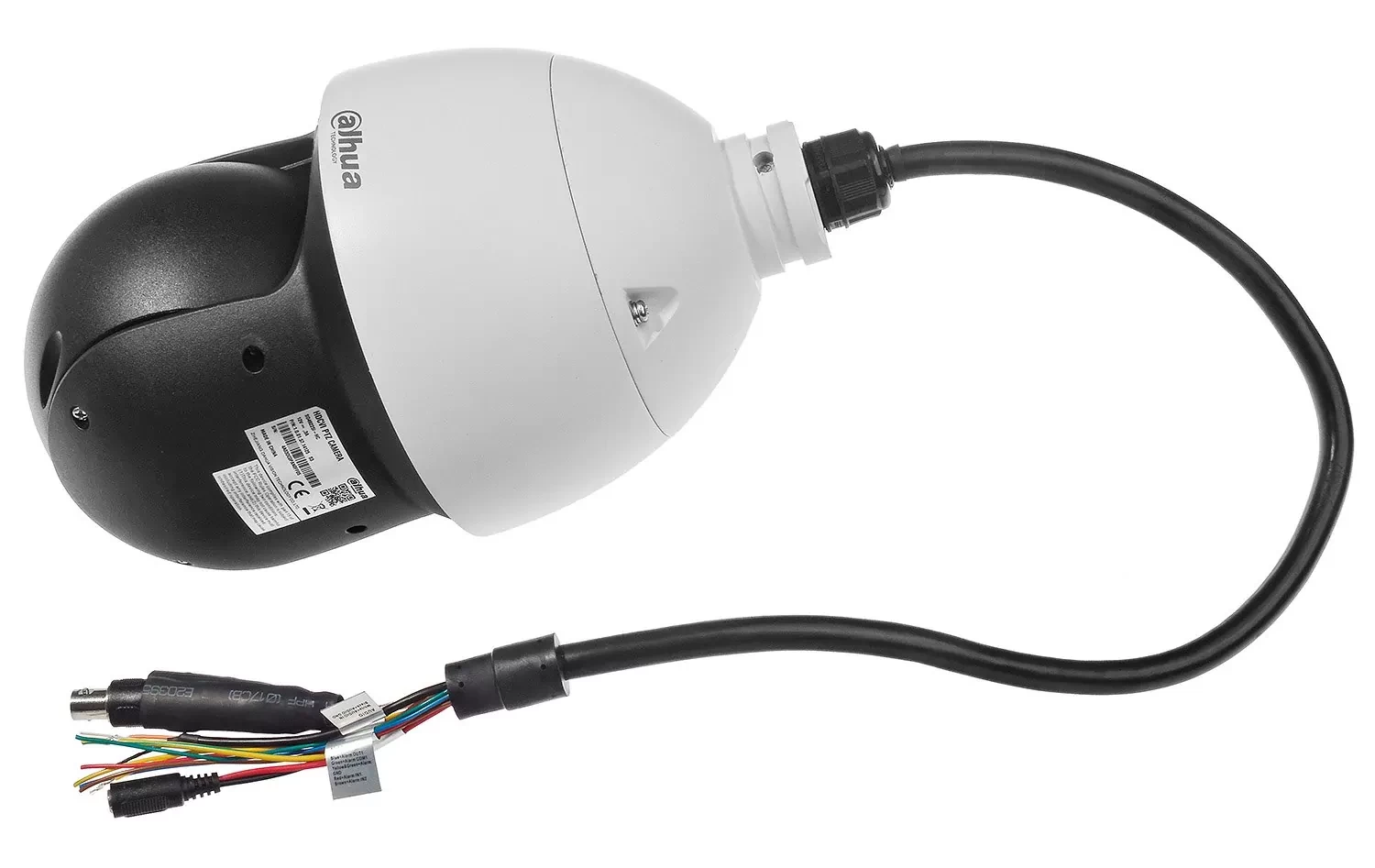

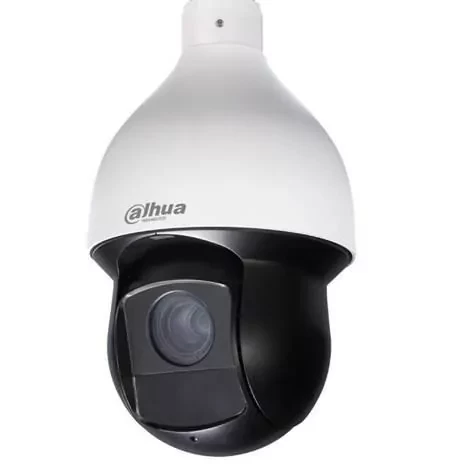

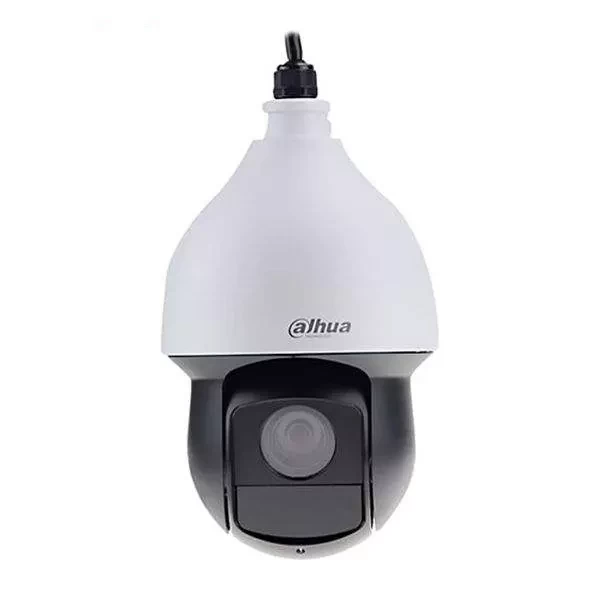

DH-SD49225-HC-LA

(0 Reviews)


Price:
৳21,275.00 /Pc

Quantity:

Total Price:
Share:
Specification:
Camera:

Image Sensor: 1/2.8" STARVIS™ CMOS

Pixel: 2MP

Max. Resolution: 1920 (H) x 1080 (V)

ROM: 16 MB

RAM: 256 MB

Electronic Shutter Speed: 1/3 s–1/100000 s

Scanning System: Progressive

Min. Illumination:

Color: 0.005 Lux@F1.6

B/W: 0.0005 Lux@F1.6

0 Lux@F1.6 (IR on)

Illumination Distance: 100 m (328.08 ft)

Illuminator On/Off Control: Auto/Manual

Illuminator Number: 6

Lens:

Focal Length: 4.8 mm–120 mm

Max. Aperture: F1.6–F3.5

Field of View:

H: 58.5°–2.8°;

V: 33.2°–1.5°;

D: 67.5°–3.2°

Optical Zoom: 25x

Focus Control: Auto/Semi-Auto/Manual

Close Focus Distance: 0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control: Auto/Manual

Pan/Tilt Range:

Pan: 0°–360°Tilt: -15°–+90°; auto flip 180°

Manual Control Speed : Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s

Preset Speed;

Pan: 240°/s; Tilt: 200°/s

Presets: 300

Tour: 8 (up to 32 presets per tour)

Pattern: 5

Scan: 5

Speed Adjustment: Support

Power-off Memory: Support

Idle Motion: Preset/Tour/Pattern/Scanning

Protocol:

DH-SD

Pelco-P/D (auto recognition)

Video:

Resolution:

1080P (1920 × 1080); 720P (1280 × 720);

D1 (704 × 576/704 × 480)

Frame Rate:

1080P (25/30 fps), 720P (25/30/50/60 fps)

Day/Night: Support

BLC: Support

WDR: 120 dB

HLC: Support

White Balance: Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control: Auto/Manual

Noise Reduction: 2D/3D

Defog: Electronic

Digital Zoom: 16x

Flip: 0°/180°

Privacy Masking: Up to 24 areas

Power:

Power supply: DC 12V/3A ± 10%

Power Consumption: 9.6 W

23.2 W (IR light on, PTZ)

Environment:

Operating Temperature: –40°C to +70°C (–40°F to +158°F)

Operating Humidity:

≤ 95%RH

Protection:

IP66; TVS 6000V lightning protection; surge protection

Structure:

Dimensions: 295.4 mm × Φ160.0 mm (11.63" × Φ6.30")

Net Weight: 3 kg (6.61 lb)

Gross Weight: 4.2 kg (9.26 lb)
