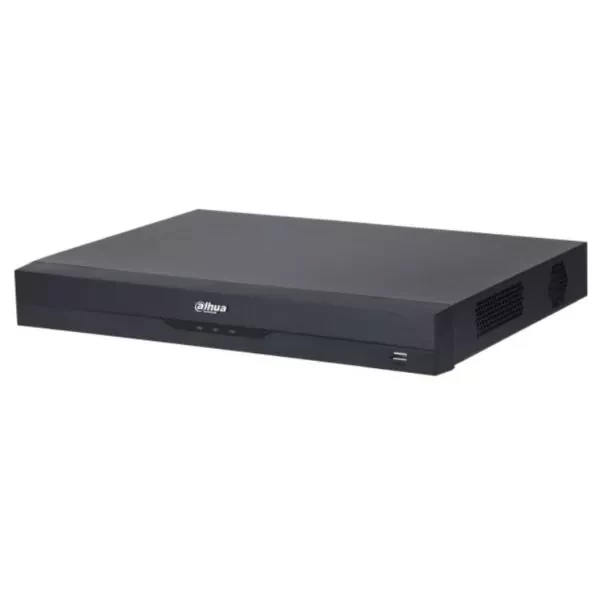

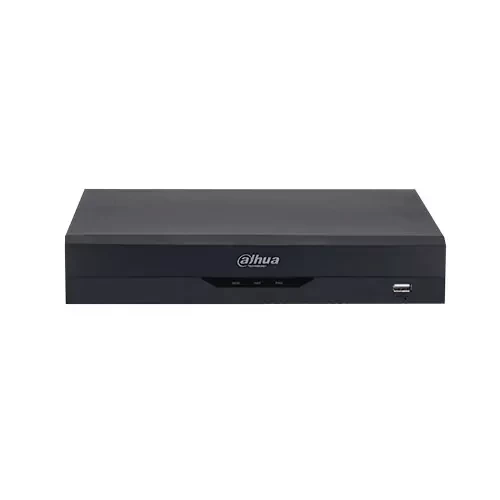

XVR5216AN-I2

Specification:

System:

Main Processor: Embedded Processor

Operating System: Embedded LINUX

Perimeter Protection:

Performance: 2 channels, 10 IVS for each channel

Object classification: Human/Vehicle secondary recognition for tripwire and intrusion

AI Search: Search by target classification (Human, Vehicle)

Face Recognition:

Performance:

Max 12 face pictures/sec processing

2 channels video stream face recognition, only support analog camera

Stranger Mode: Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.

AI Search: Up to 8 target face images search at same time, similarity threshold can be set for each target face image.

Database Management: Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.

Database Application: Each database can be applied to video channels independently .

Trigger Events: Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus:

Performance: 16 channels

AI Search: Search by target classification (Human, Vehicle)

Video and Audio:

Analog Camera Input: 16 channels, BNC

HDCVI Camera Input: 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera Input: 5MP, 4MP, 1080P@25/30, 720P@25/30fps

TVI Camera Input: 5MP, 4MP, 1080P@25/30, 720P@25/30fps

CVBS Camera Input: PAL/NTSC

IP Camera Input: 16+8 channels, each channel up to 6MP

Audio In/Out: 1/1, RCA

Two-way Talk: Reuse audio in/out, RCA

Recording:

Compression: AI Coding/H.265+/H.265/H.264+/H.264

Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate:

Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/

D1/CIF (1fps–25/30fps)

Sub stream: D1/CIF (1fps–15fps)

Bit Rate: 32 Kbps–6144 Kbps Per Channel

Record Mode:  Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval: 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s

Audio Compression: G.711A, G.711U, PCM

Audio Sample Rate: 8 KHz, 16 bit Per Channel

Audio Bit Rate: 64 Kbps Per Channel

Display:

Interface: 1 HDMI ,1 VGA

Resolution: VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.

Multi-screen Display:

When IP extension mode not enabled: 1/4/8/9/16

When IP extension mode enabled: 1/4/8/9/16/25

OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network:

Interface: 1 RJ-45 Port (1000 MB)

Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access: 128 users

Smart Phone: iPhone, iPad, Android

Interoperability: ONVIF 16.12, CGI Conformant

Video Detection and Alarm:

Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input: N/A

Relay Output: N/A

Playback and Backup:

Playback: 1/4/9/16

It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.

Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode: USB Device/Network

Storage:

Internal HDD: 2 SATA Ports, up to 10TB capacity for each disk

eSATA: N/A

Auxiliary Interface:

USB: 2 USB Ports (1 USB 2.0 , 1 USB 3.0)

RS485: 1 Port, for PTZ Control

RS232: N/A

Electrical:

Power Supply: DC 12V/4A

Power Consumption (Without HDD): <12W

Construction:

Dimensions: 1U, 375 mm × 288 mm × 53 mm

(14.76'' × 11.37'' × 2.09'')

Net Weight (without HDD): 1.8 kg (4.0 lb)

Gross Weight: 3.1 kg (6.8 lb)
