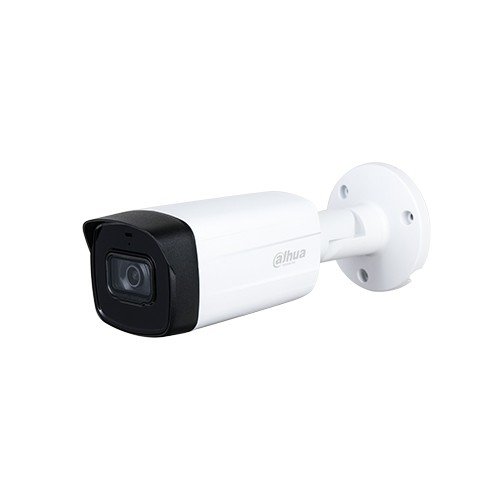

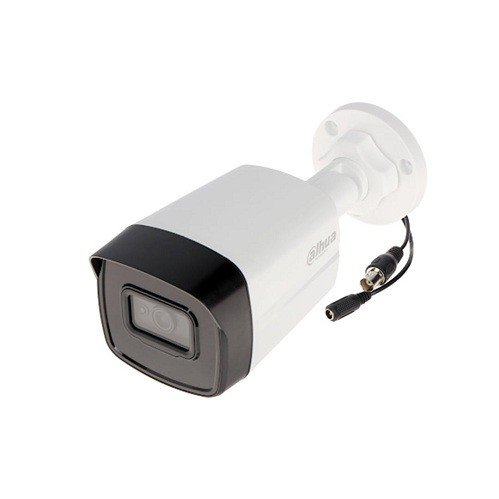

HAC-HFW1400THP-I8

(0 Reviews)


Price:
৳2,820.00 /Pc

Quantity:

Total Price:
Share:
Specification:
General:

Casing: Metal front face + plastic main body + metal bracket

Dimensions: 240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56")

Weight: 410 g

Pan/Tilt/Rotation:

Pan: 0°–360°

Tilt: 0°–180°

Rotation: 0°–360°

Operating Conditions: -40°C to +60°C (-40°F to +140°F); <95% (non-condensation)

Storage Conditions: -40°C to +60°C (-40°F to +140°F); <95% (non-condensation)

Power Supply: 12V±30% DC

Power Consumption: Max 5.1W (12V DC, IR on)

Camera:

Image Sensor: 1/2.7 inch CMOS

Effective Pixels: 2560 (H) × 1440 (V), 4MP

Electronic Shutter Speed:

PAL:1/25s–1/100000s

NTSC:1/30s–1/100000s

Minimum Illumination: 0.03Lux/F1.9, 30IRE, 0Lux IR on

IR Distance: Distance up to 80 m (262.46 ft)

IR On/Off Control: Auto; manual

IR LEDs: 2

Lens:

Lens Type:

Fixed-focal

Fixed iris

Mount Type: M12

Focal Length: 3.6 mm; 6 mm; 8 mm

Max Aperture: F2.0/F2.0/F1.9

Angle of View:

3.6 mm: 89.5° × 76.4° × 41.6°

(diagonal × horizontal × vertical)

6 mm: 55.5° × 48.6° × 27.9°

(diagonal × horizontal × vertical)

8 mm: 41.9° × 36.3° × 20.3°

(diagonal × horizontal × vertical)

Close Focus Distance: 1.4 m/2.5 m/4.5 m (4.59 ft/8.20 ft/14.76 ft)

Video:

Resolution:

4MP (2560 × 1440); 1080P (1920 × 1080); 960H (960 ×

576/960 × 480)

Frame Rate:

CVI: 4M@25fps/30fps; 1080P@25fps/30fps;

AHD: 4M@25fps/30fps;

TVI: 4M@25fps/30fps;

CVBS: 960H

Video Output:

Video output:

choices of CVI/TVI/AHD/CVBS by one

BNC port

Day/Night: Auto switch by ICR

BLC Mode: BLC/HLC/DWDR

Gain Control: Auto; manual

Noise Reduction: on 2D NR

Warranty:

Warranty: 1 Year
