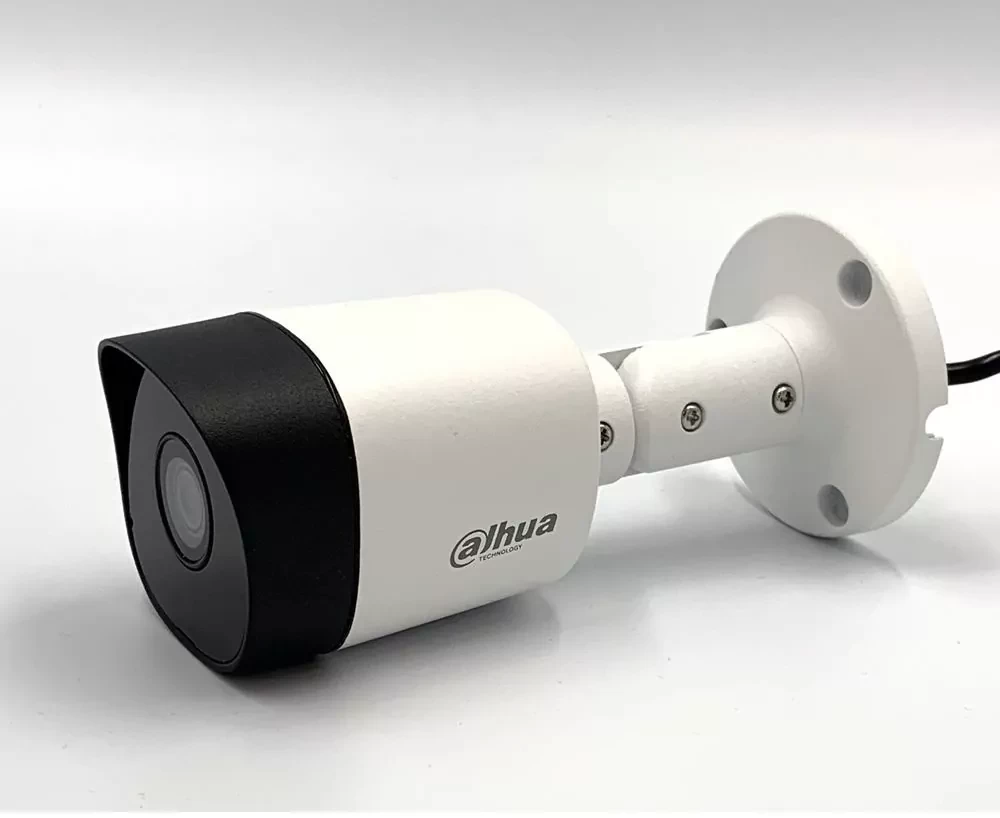

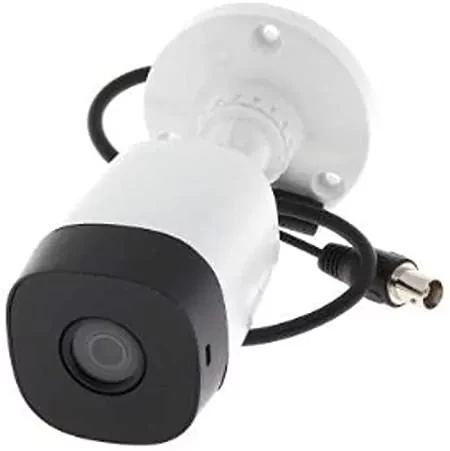

HAC-B2A21P

Specification:

Camera Feature:

Image Sensor: 1/2.7" CMOS

Effective Pixels: 1920(H)×1080(V), 2MP

IR Distance: Up to 20m (66feet)

Others:

IR On/Off Control: Auto / Manual

Scanning System: Progressive

Minimum Illumination: 0.04Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio: More than 65dB

Lens:

Type: Fixed lens / Fixed iris

Focal Length: 3.6mm (2.8mm, 6mm Optional)

Aperture: F1.85 (max.)

Angle of View: H: 93° (103°, 54.7°)

Others: Focus Control: N/A

Close Focus Distance: 800mm (500mm, 2000mm) 31.5'' (19.69'', 78.74'')

Mount Type: Board-in

Physical Specification:

Dimension: 69.8mm×69.8mm×157.6mm (2.75"×2.75"×6.20")

Weight: Net Weight: 0.25kg (0.55lb)

Gross Weight: 0.30kg (0.66lb)

Power:

Power Supply: 12V DC ±30%

Power Consumption: Max. 2.7W (12V DC, IR on)
