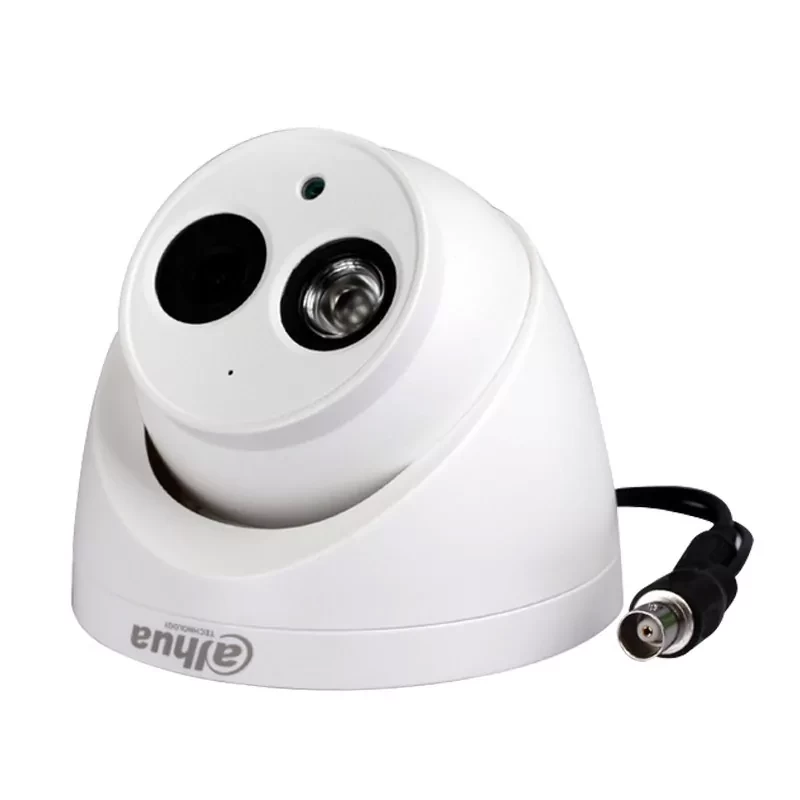

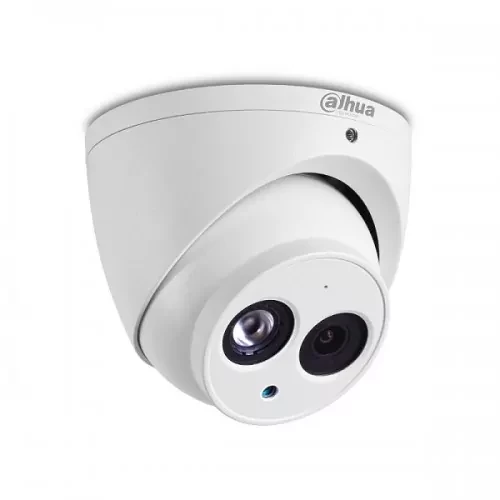

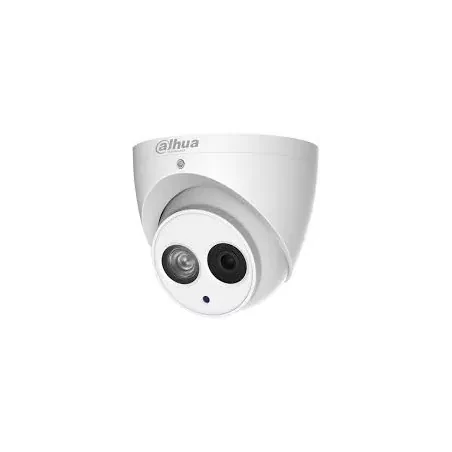

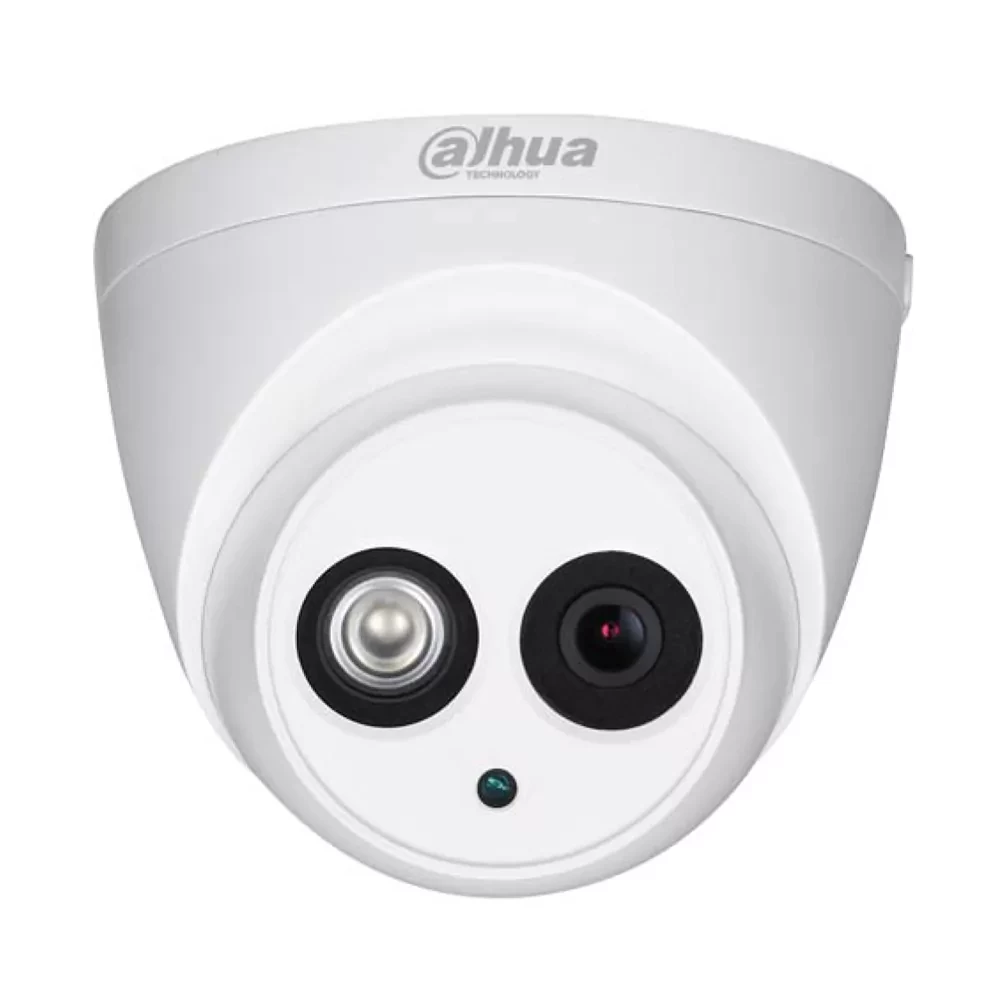

HAC-HDW1200EMP-A

Specification:

General:

Casing: Aluminium

Dimensions: Φ106mm×93.7mm (Φ4.17"×3.69")

Weight: 0.44 Kg

Pan/Tilt/Rotation: Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Power Supply: 12V DC ±30%

Power Consumption; Max 4.2W (12V DC, IR on)

Camera:

Image Sensor: 1/2.7" CMOS

Effective Pixels: 1920(H)×1080(V), 2MP

Scanning System: Progressive

Electronic Shutter Speed:

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio: More than 65dB

IR Distance: Up to 50m (164feet)

IR On/Off Control: Auto / Manual

IR LEDs: 1

Lens:

Lens Type: Fixed lens / Fixed iris

Mount Type: Board-in

Focal Length: 3.6mm

Max Aperture: F1.85

Angle of View: H: 87.5° (103°, 54.7°)

Close Focus Distance:

500mm (900mm, 2000mm)

19.69'' (35.43", 78.74'')

Video:

Resolution: 1080P (1920×1080)

Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P

Video Output:

1-channel BNC high definition video output / CVBS

video output (Can switch)

Day/Night: Auto (ICR) / Manual

BLC Mode: BLC / HLC / DWDR

Gain Control: AGC

Noise Reduction: 2D

Interface:

Audio Interface: Built-in Mic

Special Features: Features

Ingress Protection & Vandal Resistance: IP67

White Balance: Auto / Manual

Smart IR: Auto / Manual

Warranty:

Warranty: 1 Year
