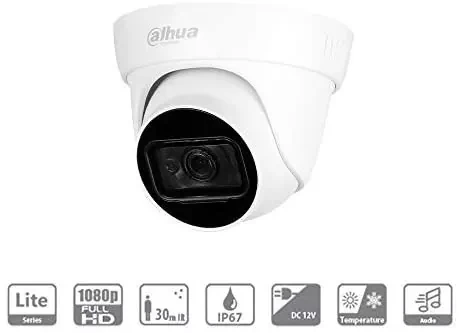

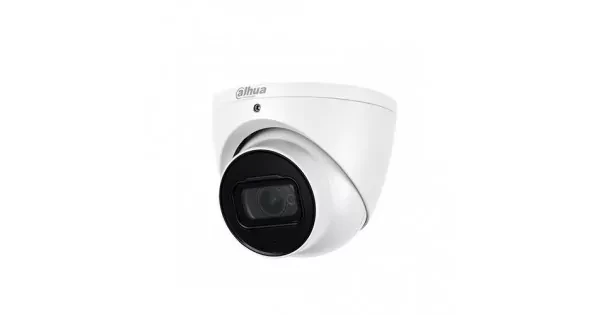

HAC-HDW1200TLP-A

Specification:

General:

Casing: Inner core: metal+plastic; cover: plastic

Dimensions: Φ97.0mm×85.8mm (Φ3.82″×3.38″)

Weight: 0.22 Kg

Pan/Tilt/Rotation: Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Operating Conditions: -40°C to +60°C (-40°F to +140°F); <95% (non-condensation)

Storage Conditions: -40°C to +60°C (-40°F to +140°F); <95% (non-condensation)

Power Supply: 12V±30% DC

Power Consumption: Max 3.6W (12V DC, IR on)

Camera:

Image Sensor: 1/2.7 inch CMOS

Effective Pixels: 1920 (H)×1080 (V), 2MP

Electronic Shutter Speed: PAL: 1/25s–1/100000s

NTSC: 1/30s–1/100000s

Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on

IR Distance: 30m (98.42ft)

IR On/Off Control: Auto; manual

IR LEDs: 1

Lens:

Lens Type: Lens Type: Fixed-focal

Iris Type: Fixed iris: Mount Type

M12 Focal Length: 2.8mm; 3.6mm

Max Aperture: F1.85/F2.0

Angle of View:

2.8mm: 118°×103°×59° (diagonal×horizontal×vertical)

3.6mm: 103.8°×87.5°×47° (diagonal×horizontal×vertical)

Close Focus Distance: 0.5m (1.64ft)/0.9m (2.95ft)

Video:

Resolution:

1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

Frame Rate:

CVI:

PAL: 1080P@25fp; 720P@25fps; 720@50fps

NTSC: 1080P@30fp; 720P@30fps; 720@60fps

AHD: PAL: 1080P@25fp; 720P@25fps

NTSC: 1080P@30fp; 720P@30fps

TVI: PAL: 1080P@25fp; 720P@25fps; 720@50fps

NTSC: 1080P@30fp; 720P@30fps; 720@60fpsCVBS: PAL: 960H

NTSC: 960H

Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Day/Night: Auto switch by ICR

BLC Mode: BLC/HLC/DWDR

Gain Control: Auto; manual

Noise Reduction: 2D NR

Interface:

Audio Interface: Built-in mic (-A)

Video Interface: Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Warranty:

Warranty: 1 Year
