HAC-HDW1209TLQP-A-LED

Specification:

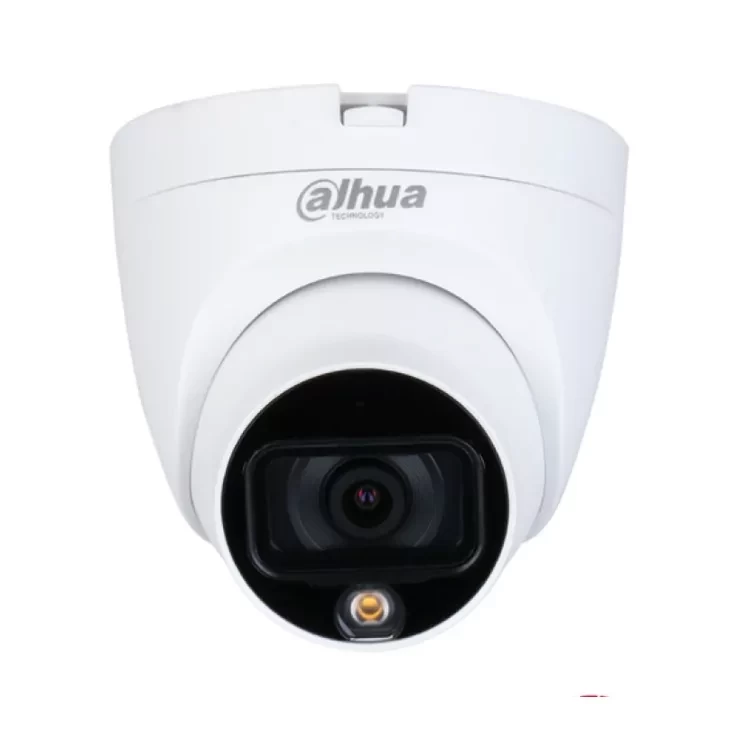

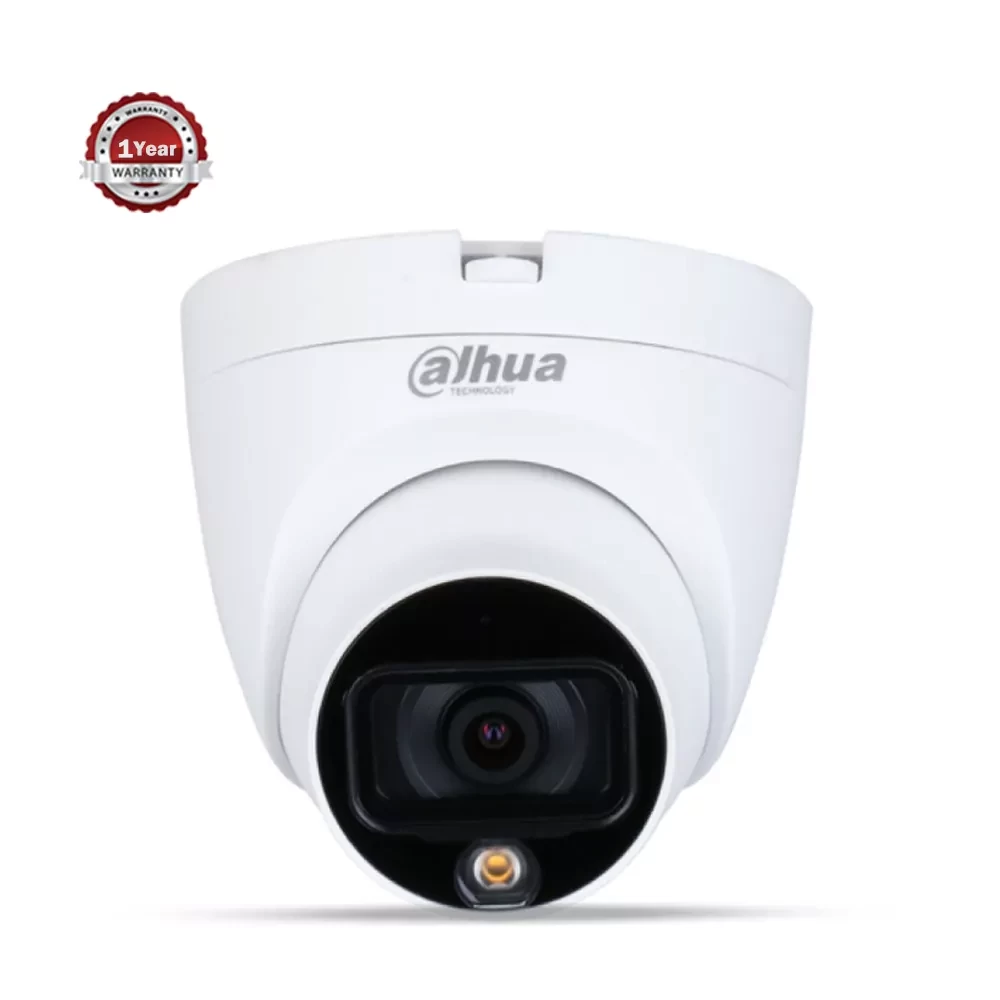

DH-HAC-HDW1209TLQP-A-LED 2MP Full-color Dome Audio Camera:

Image Sensor: 1/2.8 inch 2.16 Mega Pixels CMOS

Effective Pixels :1920 (H)×1080 (V), 2MP

Electronic Shutter Speed:

PAL:1/25s–1/100000s

NTSC:1/30s–1/100000s

Minimum Illumination:0.005Lux/F1.6, 30IRE, 0Lux white Light on

Fill Light (White Light) Distance: up to 20m (65.61ft)

Fill Light On/Off Control: Auto; Manual

Fill Light Number: 1

Pan/Tilt/Rotation Range: Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

HDW1209TLQP-A-LED Full Color Lens:

Lens Type: Fixed-focal

Mount Type:  M12

Focal Length:2.8m

Max. Aperture: F1.6

Angle of View 2.8mm:

126.2°×106.0°×56.5° (diagonalxhorizontalxvertical)

3.6mm: 103.6°x86.9°x46.3°(diagonalxhorizontalxvertical)

Iris Type: Fixed iris

Close Focus Distance:

2.8mm: 0.6m (1.97ft)

3.6mm: 1.2m (3.94ft)

DORI Distance Lens Detect Observe Recognize Identify:

2.8mm 38.6m (126.6ft) 15.4m (50.5ft) 7.7m (25.3ft) 3.9m (12.8ft)

3.6mm 55.2m (181.1ft) 22.1m (72.5ft) 11.0m (36.0ft) 5.5m (18.0ft)

Video:

Video Frame Rate CVI:

PAL: 1080@25fps, 720@25fps, 720@50fps;

NTSC: 1080@30fps, 720@30fps, 720@60fps

AHD: PAL: 1080@25fps,720@25fps;

NTSC: 1080@30fps,720@30fps

TVI: PAL: 1080@25fps,720@25fps,720@50fps;

NTSC: 1080@30fps,720@30fps,720@60fps

CVBS: PAL: 960×576H;

NTSC: 960×480H

BLC: BLC/HLC/WDR

WDR: DWDR

White Balance: Auto; Manual

Gain Control: Auto; Manual

Noise Reduction :2D NR

Smart Light: Yes

Electronic Defog: Yes

Digital Zoom: 16X

Mirror: Off/On

Privacy Masking: Off/On (4 area, rectangle)

Certification:

Certifications: CE (EN55032, EN55024, EN50130-4,EN60950-1)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface:

Audio Interface Audio; Yes

Port:

Video Port: Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power:

Power Supply: 12V ±30% DC

Power Consumption : Max 3W (12V DC, white light on)

Environment:

Operating Temperature:  -40°C to +60°C (-40°F to 140°F);<95% (non-condensation)

Storage Temperature:  -40°C to +60°C (-40°F to 140°F);<95% (non-condensation)

Protection Grade: IP67

Structure:

Casing Inner core: metal+plastic; cover: plastic;pedestal: plastic

Dimensions: φ97mm×85.8mm (φ3.82″×3.38″)

Net Weight : 0.22Kg (0.49lb)

Gross Weight: 0.28Kg (0.62lb)
