HAC-HDW1209TLQP-LED

Specification:

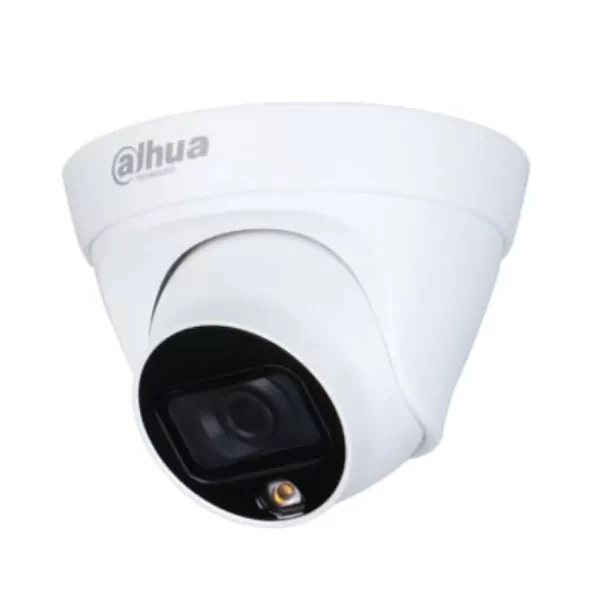

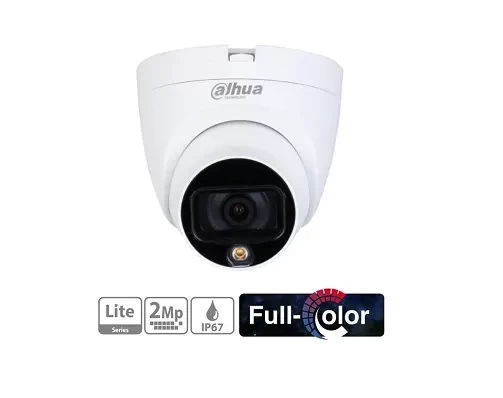

DH-HAC-HDW1209TLQP-LED 2M Full-color Starlight HDCVI Eyeball Camera:

Image Sensor: 1/2.8 inch 2.16 Mega Pixels CMOS

Effective Pixels: 1920 (H)×1080 (V), 2MP

Electronic Shutter Speed :

PAL:1/25s–1/100000s

NTSC:1/30s–1/100000s

Minimum Illumination: 0.005Lux/F1.6, 30IRE, 0Lux white Light on

Fill Light (White Light) Distance Distance: up to 20m (65.61ft)

Fill Light On/Off Control: Auto; Manual

Fill Light Number: 1

Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

HDW1209TLQP-LED Full Color Lens:

Lens Type: Fixed-focal

Mount Type M12

Focal Length: 2.8m/3.6mm

Max Aperture: F1.6

Angle of View 2.8mm:

126.2°×106.0°×56.5 (diagonalxhorizontalxvertical)

3.6mm: 103.6°x86.9°x46.3°(diagonalxhorizontalxvertical)

Iris Type : Fixed iris

Close Focus Distance :

2.8mm: 0.6m (1.97ft)

3.6mm: 1.2m (3.94ft)

Video:

Video Frame Rate CVI:

PAL: 1080@25fps, 720@25fps, 720@50fps;

NTSC: 1080@30fps, 720@30fps, 720@60fps

AHD: PAL: 1080@25fps,720@25fps;

NTSC: 1080@30fps,720@30fps

TVI: PAL: 1080@25fps,720@25fps,720@50fps;

NTSC: 1080@30fps,720@30fps,720@60fps

CVBS: PAL: 960×576H;

NTSC: 960×480H

WDR: DWDR

Digital Zoom; 16X

Construction:

Casing; Inner core: metal+plastic; cover: plastic;

pedestal: plastic

Dimensions: φ97mm×85.8mm (φ3.82″×3.38″)

Net Weight: 0.22Kg (0.49lb)

Gross Weight:0.28Kg (0.62lb)
