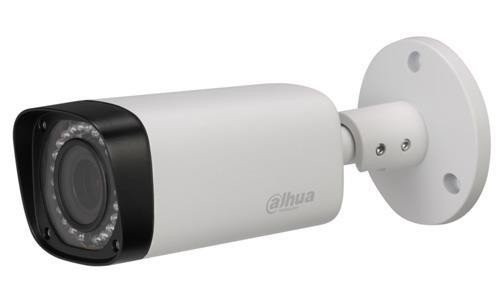

HAC-HFW1200RP

Specification:

General:

Casing: Aluminium

Dimensions: 213mm×90.4mm×90.4mm (8.39"×3.56"×3.56")

Weight: 0.55Kg

Pan/Tilt/Rotation: Pan: 0° ~ 360°

Tilt: 0° ~ 87°

Rotation: 0° ~ 360°

Operating Conditions:-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Storage Conditions: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Camera:

Image Sensor: 1/2.7" CMOS

Effective Pixels: 1920(H)×1080(V), 2MP

Scanning System: Progressive

Electronic Shutter Speed:

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination: 0.02Lux/F1.8, 30IRE, 0Lux IR on

S/N Ratio: More than 65dB

IR Distance: Up to 60m (197feet)

IR On/Off Control: Auto / Manual

IR LEDs: 4

Lens:

Lens Type: Motorized lens / Fixed iris

Mount Type: Board-in

Focal Length: 2.7-12mm

Max Aperture: F1.8

Angle of View: H: 105.9°~33.4°

Focus Control: Motorized

Close Focus Distance: 200mm, 7.87''

Video:

Resolution: 1080P (1920×1080)

Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P

Video Output: 1-channel BNC high definition video output / CVBS

video output (Can switch): Day/Night

Auto (ICR) / Manual: BLC Mode,BLC / HLC / DWDR

Gain Control: AGC

Noise Reduction: 2D

Special Features

Features: Ingress Protection & Vandal: Resistance IP67

Warranty:

Warranty: 1 Year
