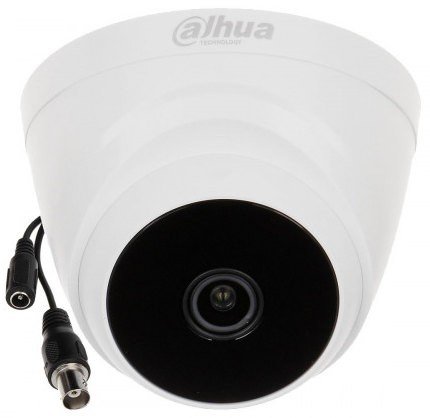

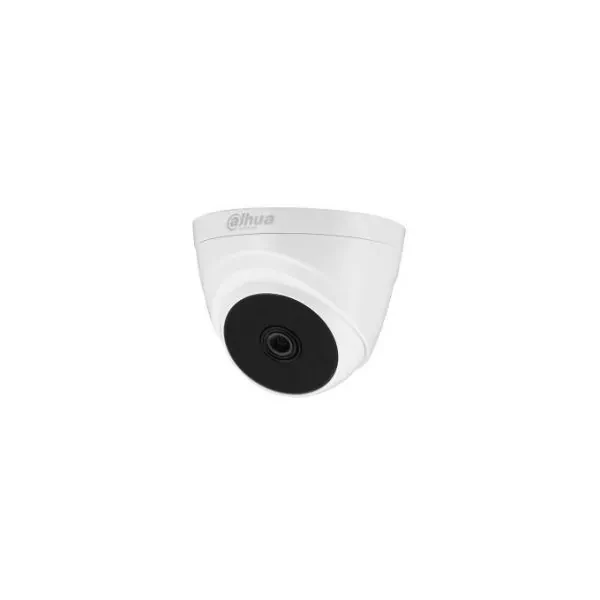

HAC-T1A21P

Specification:

Camera:

Image Sensor: 1/2.7" CMOS

Effective Pixels: 1920(H)×1080(V), 2MP

Scanning System: Progressive

Electronic Shutter Speed:

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination: 0.04Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio: More than 65dB

IR Distance: Up to 20m (66feet)

IR On/Off Control: Auto / Manual

Lens:

Lens Type: Fixed lens / Fixed iris

Mount Type: Board-in

Focal Length: 3.6mm (2.8mm, 6mm Optional)

Max Aperture:F1.85

Angle of View: H: 93° (103°, 54.7°)

Focus Control: N/A

Close Focus Distance:

800mm (500mm, 2000mm)

31.50'' (19.69", 78.74'')

Pan / Tilt / Rotation

Pan/Tilt/Rotation:

Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video:

Resolution: 1080P (1920×1080)

Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P

Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night: Auto (ICR) / Manual

OSD Menu: Multi-language

BLC Mode: BLC / HLC / DWDR

WDR: DWDR

Gain Control: AGC

Noise Reduction: 2D

White Balance: Auto / Manual

Smart IR: Auto / Manual

Audio Interface: N/A

Eelectrical:

Power Supply: 12V DC ±30%

Power Consumption: Max. 2.3W (12V DC, IR on)

Environmental:

Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance: NA

Construction:

Casing: Plastic

Dimensions: 85mm×85mm×69mm(3.35"×3.35"×2.72")

Net Weight: 0.09kg (0.20lb)

Gross Weight: 0.13kg (0.27lb)
