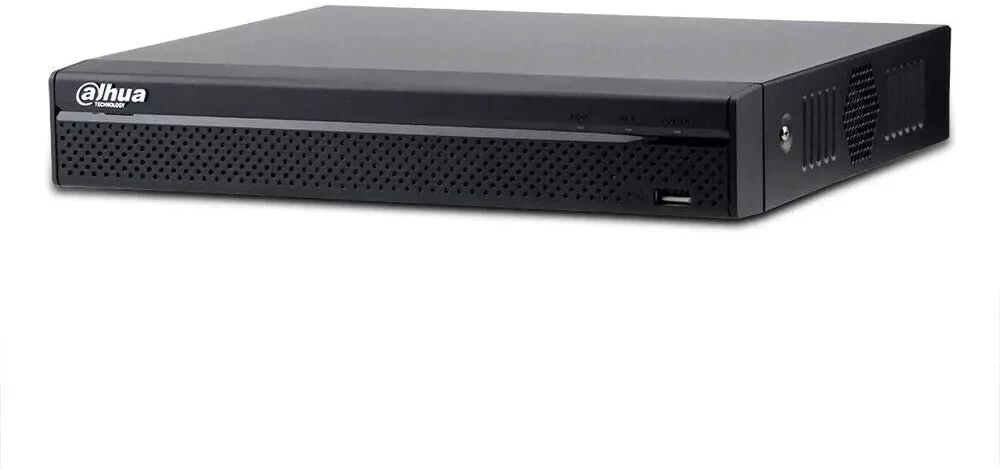

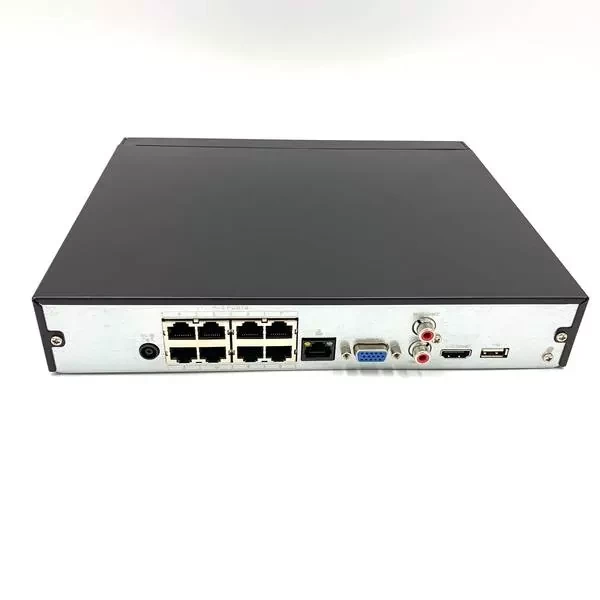

NVR2108HS-8P-4KS2

Specification:

System:

Main Processor: Dual-core embedded processor

Operating System: Embedded LINUX

Audio and Video:

IP Camera Input: 8 Channel

Two-Way Talk: 1 Channel Input, 1 Channel Output, RCA

Display:

Interface: 1 HDMI, 1 VGA

Resolution: HDMI: 3840×2160, 1920×1080, 1280×1024,1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity: 1ch@8MP 30fps, 4ch@1080P 30fps

Multi-Screen Display: 4CH: 1/4

                                      8CH: 1/4/8/9

OSD: Camera title, Time, Camera lock, Motion detection, Recording

Recording:

Compression: H.265/H.264

Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.

Record Rate: 80Mbps

Bit Rate: 16Kbps ~ 20Mbps Per Channel

Record Mode: Manual, Schedule(Regular(Continuous), MD, Stop

Record Interval: 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection And Alarm:

Trigger Event: Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips

Video Detection: Motion Detection, MD Zones: 396 (22 × 18) and Tampering

Alarm Input: N/A

Relay Output: N/A

Playback And Backup:

Sync Playback: 1/4

Search Mode: Time /Date, MD and Exact Search (accurate to second)

Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom

Backup Mode: USB Device/Network

Third Party Support:

Third Party Support: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Network:

Interface: 1 RJ-45 port (10/100Mbps)

PoE: N/A

Network Function: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip

Optical Fiber Interface: N/A

Maximum User Access: 128 users

Smart Phone: iPhone, iPad, Android

Interoperability: ONVIF 2.4, SDK, CGI

Storage:

Internal HDD: 1 SATA III Port, up to 6TB capacity for each HDD

HDD Mode: Single

eSATA: N/A

Auxiliary Interface:

USB: 2 ports (1 Rear USB2.0, 1 Front USB2.0)

RS232: N/A

RS485: N/A

Power:

Power Supply: Single, DC12V/2A

Power Consumption: <3W (without HDD)

Component Environment:

Operational Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction:

Dimensions: Compact 1U, 260mm×224.9mm×47.6mm (10.2" x 8.9" x 1.9")

Net Weight: 0.8kg (1.76 lb) (without HDD)

Gross Weight: 1.6kg(3.53 lb)(without HDD)
