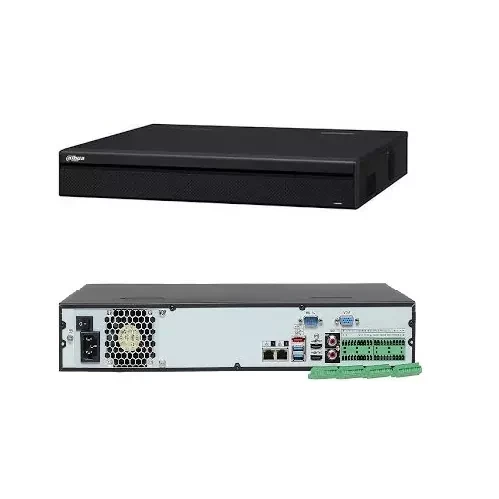

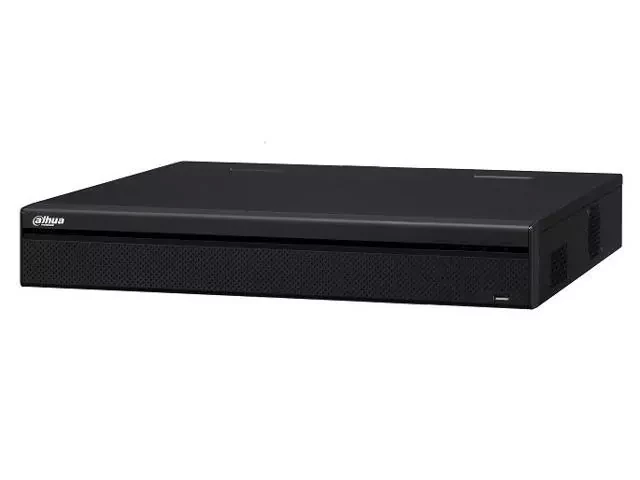

NVR5432-4KS2

Specification:

System:

Main Processor: Quad-core embedded processor

Operating System: Embedded LINUX

Audio and Video:

IP Camera Input: 32 Channel

Two-Way Talk: 1 Channel Input, 2 Channel Output, RCA

Display:

Interface: 2 HDMI, 2 VGA

Resolution:

HDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768

VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768

HDMI2/VGA2: 1920 × 1080

Decoding Capacity: 4-ch@8MP(30fps), 16-ch@1080P(30fps)

Multi-Screen Display: 1st Screen: 1/4/8/9/16/25/36

2nd Screen: 1/4/8/9/16

OSD: Camera title, Time, Camera lock, Motion detection, Recording

Recording:

Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

Bit Rate: 16Kbps ~ 20Mbps Per Channel

Record Mode: Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop

Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection And Alarm:

Trigger Event: Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm Input: 16 Channel

Relay Output: 6 Channel

Playback And Backup:

Sync Playback: 1/4/9/16

Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode: USB Device/Network/eSATA Device

Third Party Support:

Third Party Support: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network:

Interface: 2 RJ-45 Ports (10/100/1000Mbps)

Independent or Joint Working

PoE: N/A

Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P

Maximum User Access: 128 users

Smart Phone: iPhone, iPad, Android

Interoperability: ONVIF 2.4, SDK, CGI

Storage:

Internal HDD: 4 SATA III Ports, Up to 10 TB capacity for each HDD

eSATA: 1 eSATA

Auxiliary Interface:

USB: 3 USB Ports (2 Rear USB 3.0 , 1 Front USB 2.0 )

RS232: 1 Port, for PC Communication and Keyboard

RS485: 1 Port, for PTZ Control

Power:

Power Supply: Single, AC100V ~ 240V, 50 ~ 60 Hz

Power Consumption: <16.7W (Without HDD)

Smart fan, automatically adjust running speed

Component Environment:

Operational Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction:

Dimensions: 1.5U, 440mm x 411.2mm x 76mm ;

(17.3" x 16.2" x 3.0")
