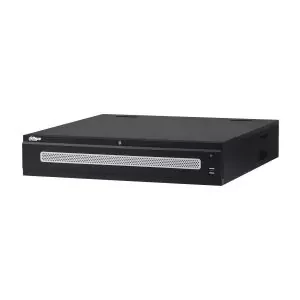

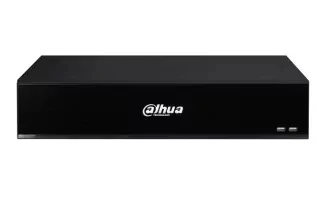

NVR4232-4KS2

Specification:

System:

Main Processor: Quad-core embedded processor

Operating System: Embedded LINUX

Audio and Video:

IP Camera Input: 32 Channel

Two-Way Talk: 1 Channel Input, 1 Channel Output, RCA

Display:

Interface: 1 HDMI, 1 VGA

Resolution:

HDMI: 3840 x 2160 , 1920 x 1080 , 1280 x 1024, 1280 x 720 ,

1024 x 768

VGA: 1920 x 1080 , 1280 x 1024, 1280 x 720 , 1024 x 768

Decoding Capacity: 4-ch@8MP(30fps), 16-ch@1080P(30fps)

Multi-Screen Display: 1/4/8/9/16/25/36

OSD: Camera title, Time, Camera lock, Motion detection, Recording

Recording:

Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

Resolution: 12MP with 15fps, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, CIF with 30fps

Bit Rate: Max 200 Mbps Bit rate input

Record Mode: Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop

Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection And Alarm:

Trigger Event: Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering

Alarm Input: 4 Channel

Relay Output: 2 Channel

Playback And Backup:

Sync Playback: 1/4/9/16

Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode: USB Device/Network

Third Party Support:

Third Party Support: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network:

Interface: 1 RJ-45 Ports (10/100/1000Mbps)

PoE: N/A

Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4IP

Maximum User Access: 128 users

Smart Phone: iPhone, iPad, Android

Interoperability: ONVIF 2.4, SDK, CGI

Storage:

Internal HDD: 2 SATA III Ports, up to 6TB capacity for each HDD

HDD Mode: Single

eSATA: N/A

Auxiliary Interface:

USB: 2 ports (1 Rear USB3.0,1 Front USB2.0)

RS232: 1 Port, for PC Communication and Keyboard

RS485: 1 Port, for PTZ Control

Power:

Power Supply: Single, DC12V/4A

Power Consumption:<9.5W (Without HDD)

Component Environment:

Operational Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction:

Dimensions: 1U, 375mm x 281.5mm x 56mm ;(14.8" x 11.1" x 2.2")
