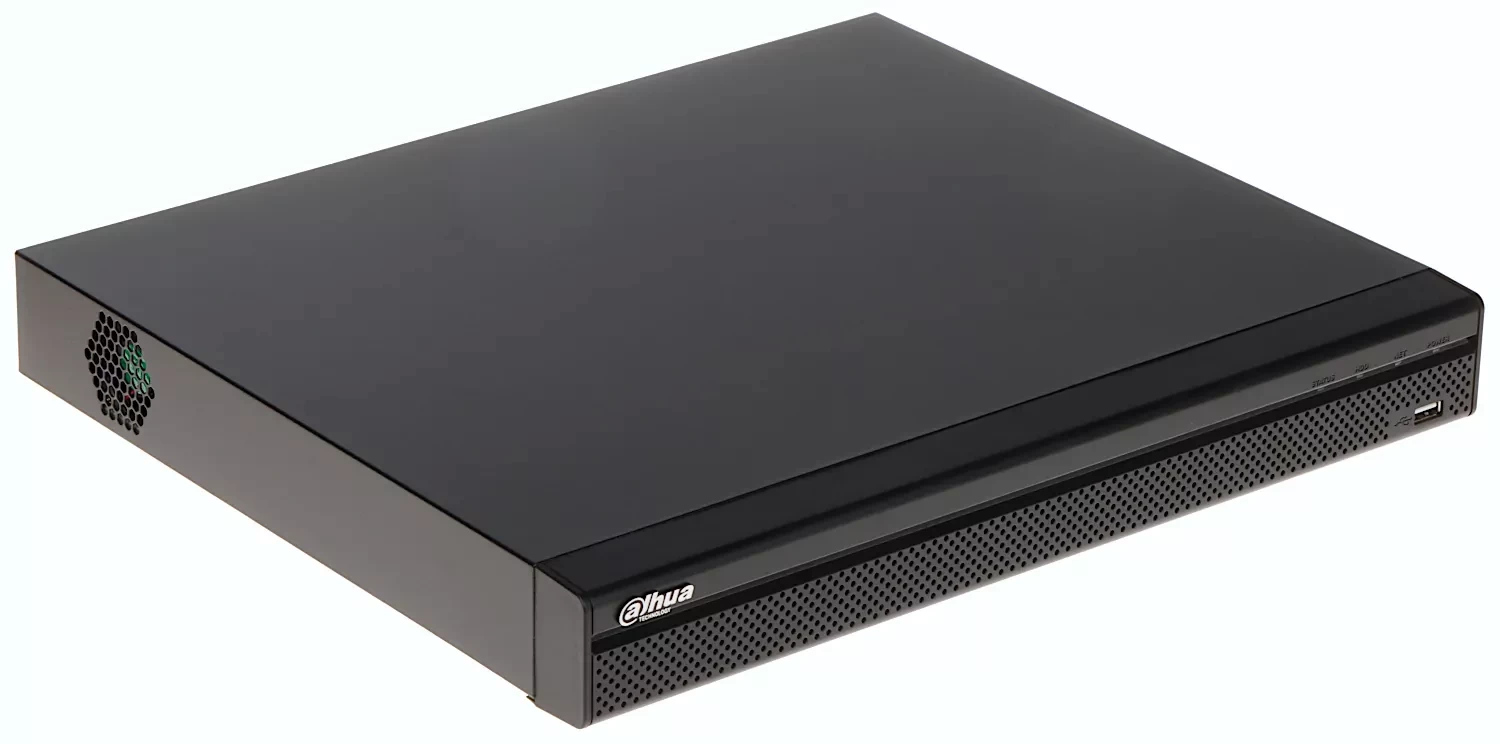

NVR4208-8P-4KS2

Specification:

System:

Main Processor: Quad-core embedded processor

Operating System: Embedded LINUX

Audio and Video:

IP Camera Input: 8 Channel

Two-Way Talk: 1 Channel Input, 1 Channel Output, RCA

Display:

Interface: 1 HDMI, 1 VGA

Resolution:

HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity: 2ch@4K 30fps, 8ch@1080P 30fps

Multi-Screen Display: 1/4/8/9

OSD: Camera title, Time, Camera lock, Motion detection, Recording

Recording:

Compression: Smart H.265+/H.265/Smart H.264+/H.264

Resolution: 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate: 200Mbps

Bit Rate: 16Kbps ~ 20Mbps Per Channel

Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Record Interval: 1 ~ 120 min (default: 60 min), Pre-record:

1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection And Alarm:

Trigger Event: Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection: Motion Detection, MD Zones: 396 (22 × 18),

                               Video Loss and Tampering

Alarm Input: 4 Channel

Relay Output: 1-Channel relay output,1-Channel 12V control

Playback And Backup:

Sync Playback: 1/4/9

Search Mode: Time /Date, MD and Exact Search (accurate to second), Smart search

Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode: USB Device/Network

Third Party Support:

Third Party Support: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network:

Interface:1 RJ-45 Port (10/100/1000Mbps)

Ethernet Port: 1 Independent 1000Mbps Ethernet Port

PoE; 8 ports (IEEE802.3at/af)

Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.)

Maximum User Access: 128 users

Smart Phone: iPhone, iPad, Android

Interoperability: ONVIF 2.4, SDK, CGI

Storage:

Internal HDD: 2 SATA III Ports, Up to 6 TB capacity for each HDD

HDD Mode: Single

eSATA: N/A

Auxiliary Interface:

USB: 2 ports (1 USB2.0, 1 USB3.0)

RS232: N/A

RS485: N/A

Power:

Power Supply: AC100V ~ 240V, 50 ~ 60 Hz

Power Consumption: NVR: < 9.6W(without HDD)

PoE: Max 25.5w for single port, 130w in total

Component Environment:

Operational Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction:

Dimensions: 1U, 375mm×327.5mm×53mm (14.8" x 12.9" x2.1")

Net Weight: 2.6kg (5.7 lb) (without HDD)

Gross Weight: 4kg(8.8 lb)(without HDD)
